Nexa AI Server
1 / 5

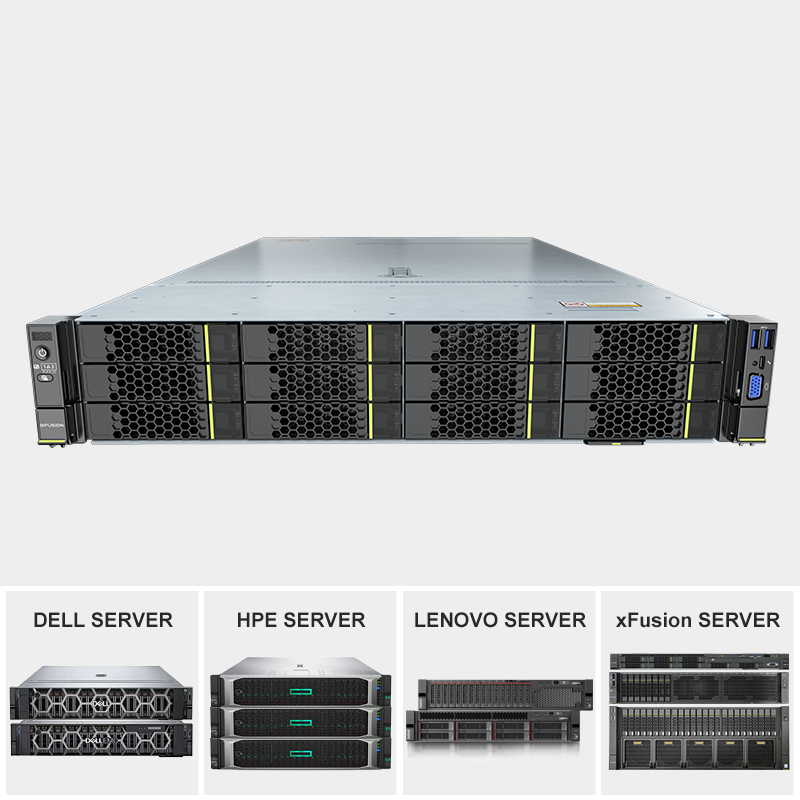

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection. |
| Network | Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs via FlexIO card slots. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including dedicated RAID card and OCP 3.0 slots. |
| Management | iBMC chip integrates dedicated GE management port; supports Redfish, SNMP, and IPMI 2.0; HTML5/VNC KVM remote management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, etc. |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy mode (900W, 1200W, 1500W, 2000W, 3000W options). |
