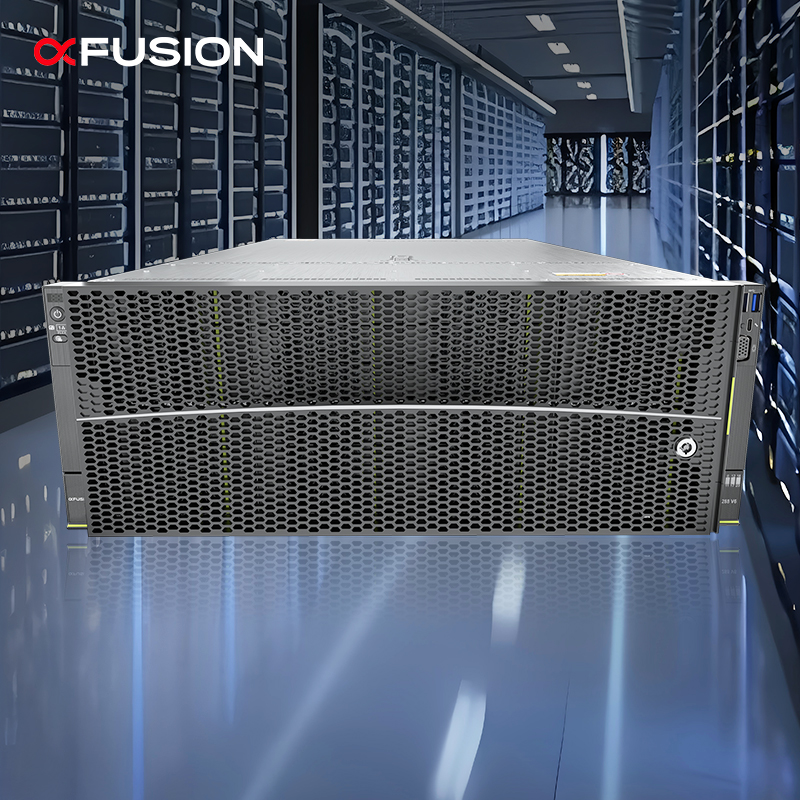

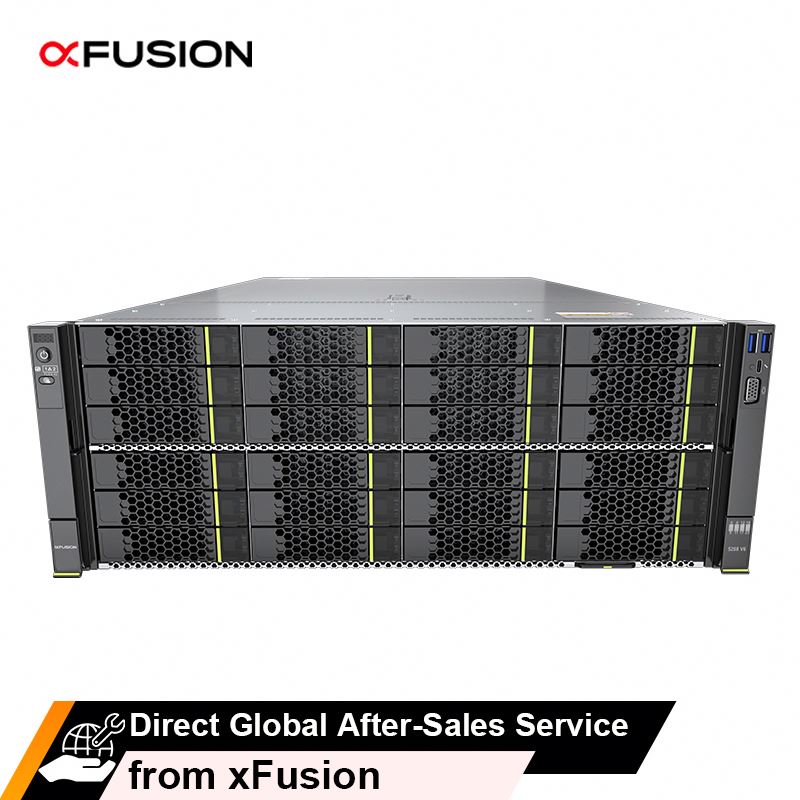

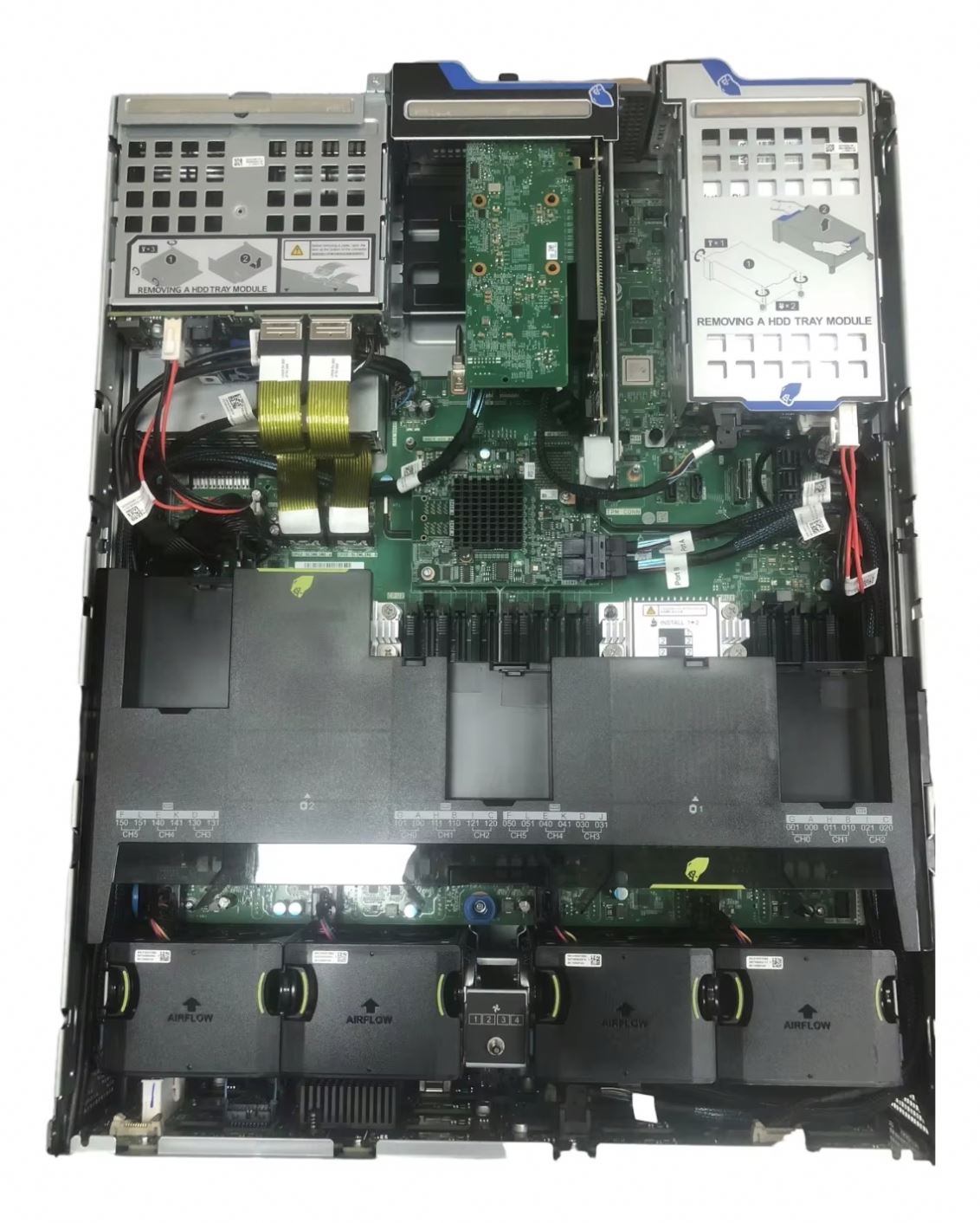

FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs.

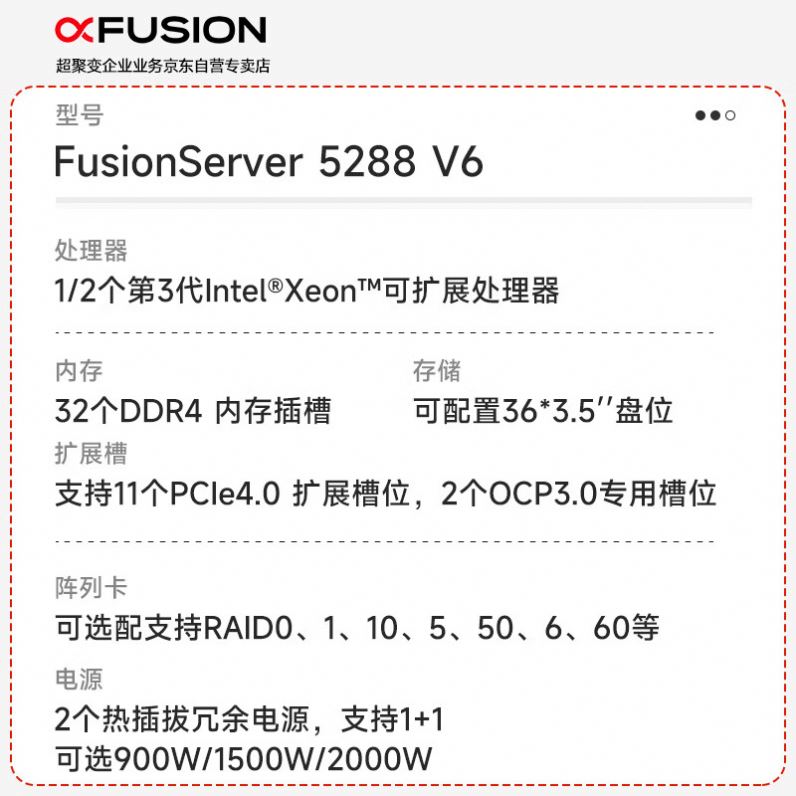

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series), up to 270W |
| Local Storage |
Various hot-swappable configurations: • 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs • 24 x 3.5-inch SAS/SATA front disks • 4 x 3.5-inch SAS/SATA internal disks • 16 x 3.5-inch SAS/SATA + 4 x 2.5-inch SAS/SATA/NVMe rear disks • 12 x 3.5-inch SAS/SATA + 8 x 2.5-inch rear disks • Flash: Dual M.2 SSDs |

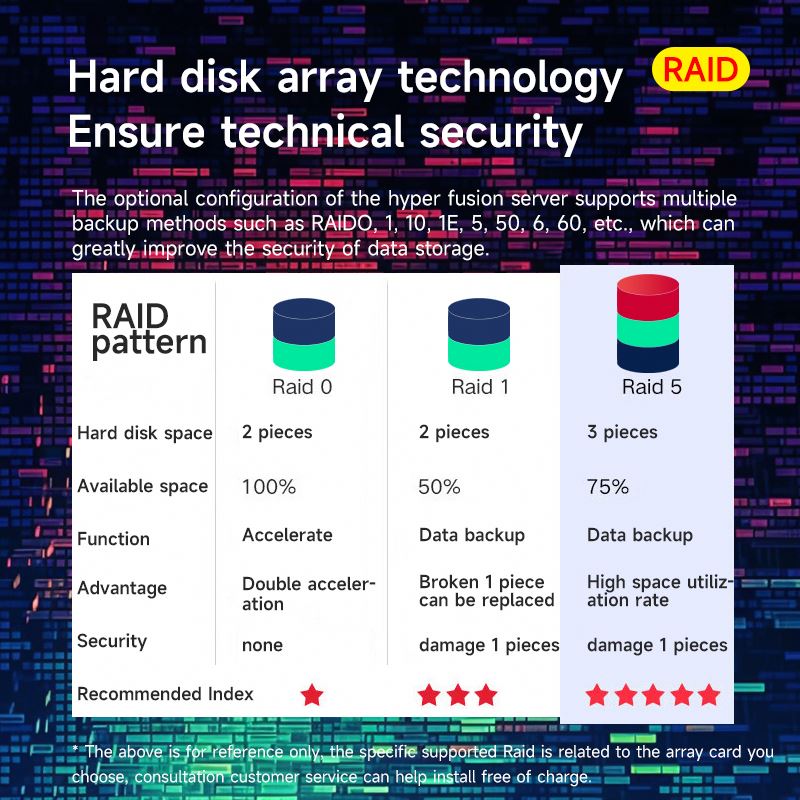

| RAID Support | RAID 0, 1, 5, 50, 6, 60; cache supercapacitor protection, disk roaming, self-diagnosis, and remote configuration. |
| Network | OCP 3.0 NIC; Two FLEX I/O card slots support two OCP 3.0 NICs; Supports hot swap. |
| PCIe Expansion | Maximum of 11 PCIe 4.0 slots (1 dedicated for RAID, 2 FLEX I/O for OCP3.0, 8 standard slots). |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy. |
| Dimensions | Chassis: 175 mm x 447 mm x 790 mm |
| Power Supply |
Redundant hot-swappable PSUs (1+1 mode): • 900W AC Platinum/Titanium • 1500W AC Platinum • 2000W AC Platinum |
