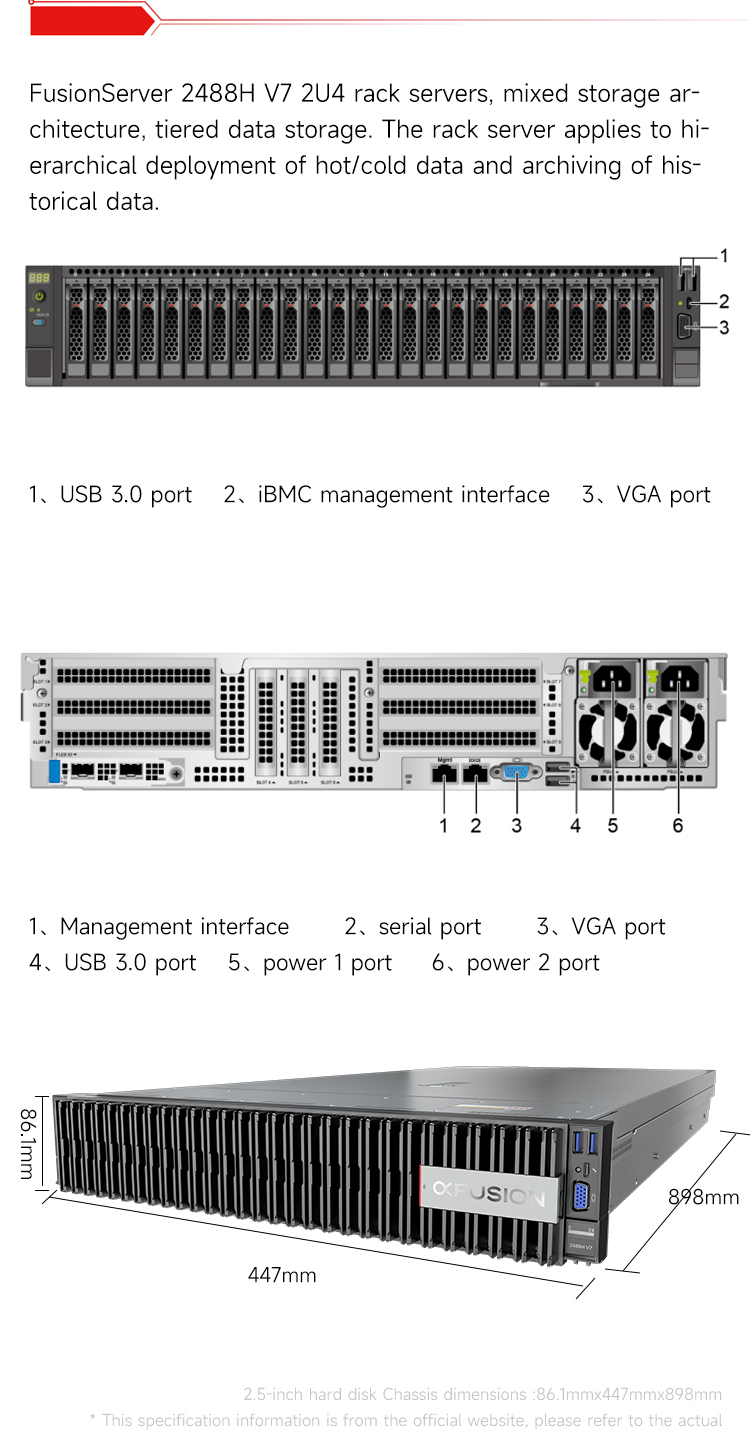

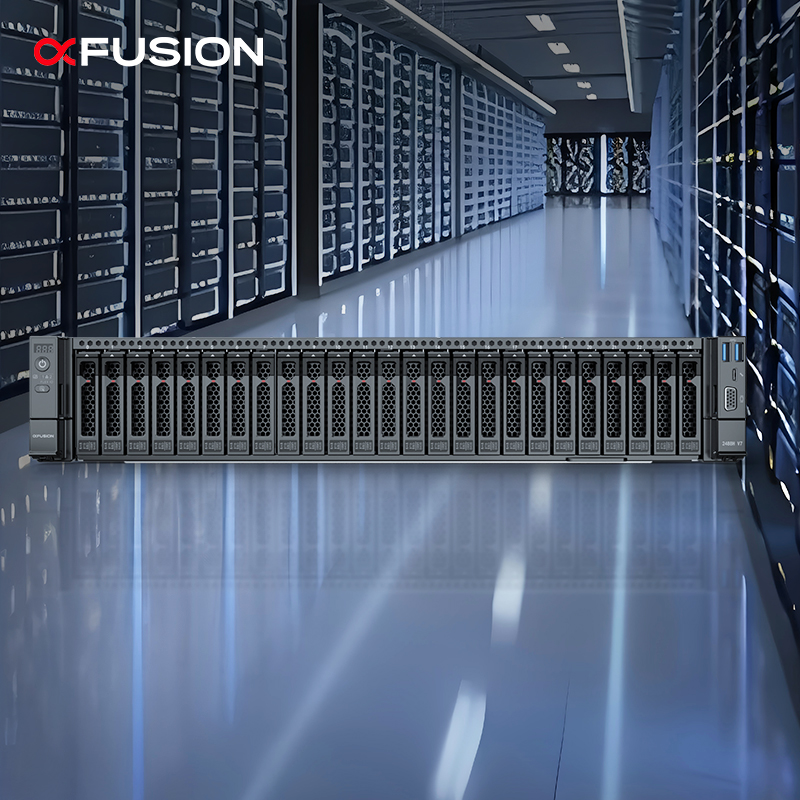

| Server Model | 2488H V7 |
| Form Factor | 2U rack server |
| Processors | 2/4th generation Intel @ Xeon. Scalable processor, single processor maximum support 350W |
| Chipset | Emmitsburg PCH |

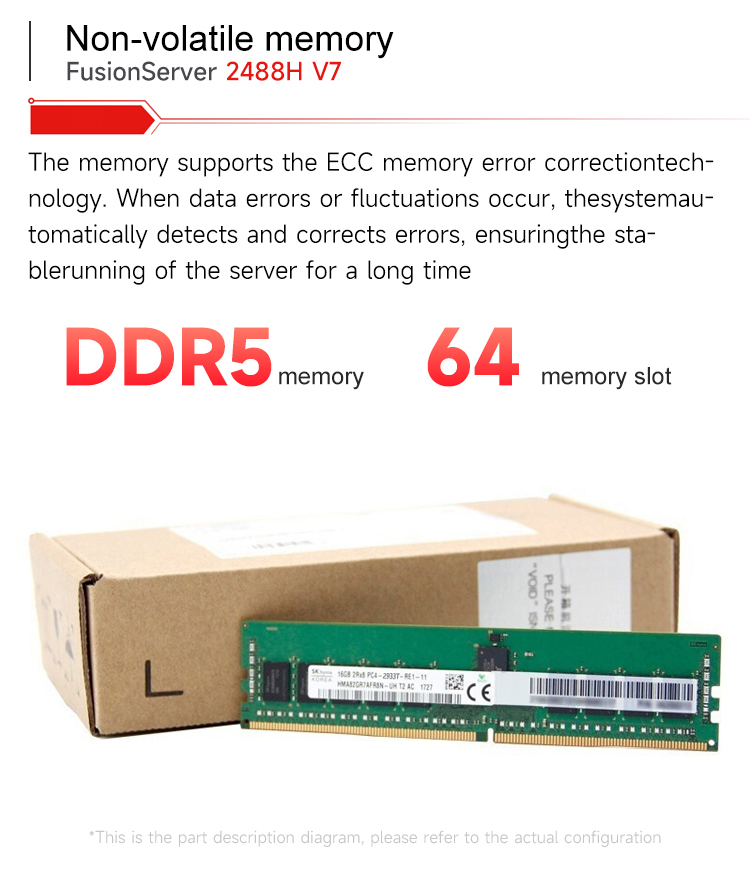

| Internal memory | 64 DDR5 memory slots are available |

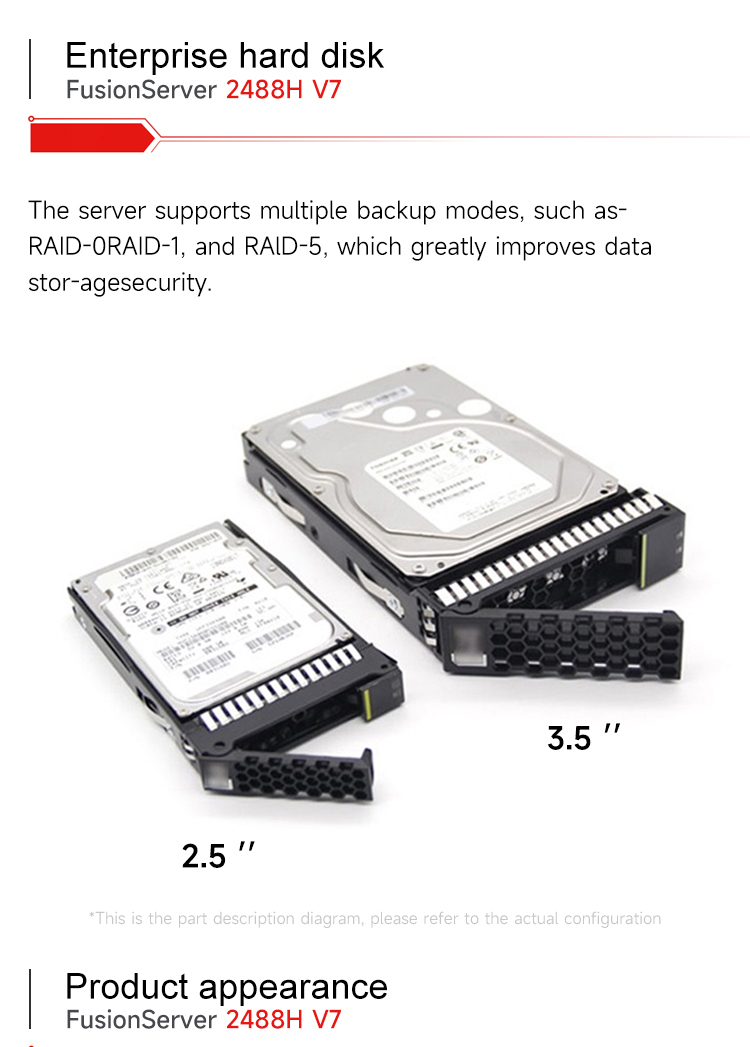

| Local storage | Supports a variety of hard disk configurations, hard disk support hot swap: Eight front-facing 2.5-inch SAS or SATA hard disks can be configured. Up to 25 front-facing 2.5-inch SAS/SATA disks can be configured. Four front-facing 2.5-inch SAS/SATA disks and eight NVMe SSD disks can be configured. Supports Flash storage: dual M.2 SSD and hard RAID technology. |

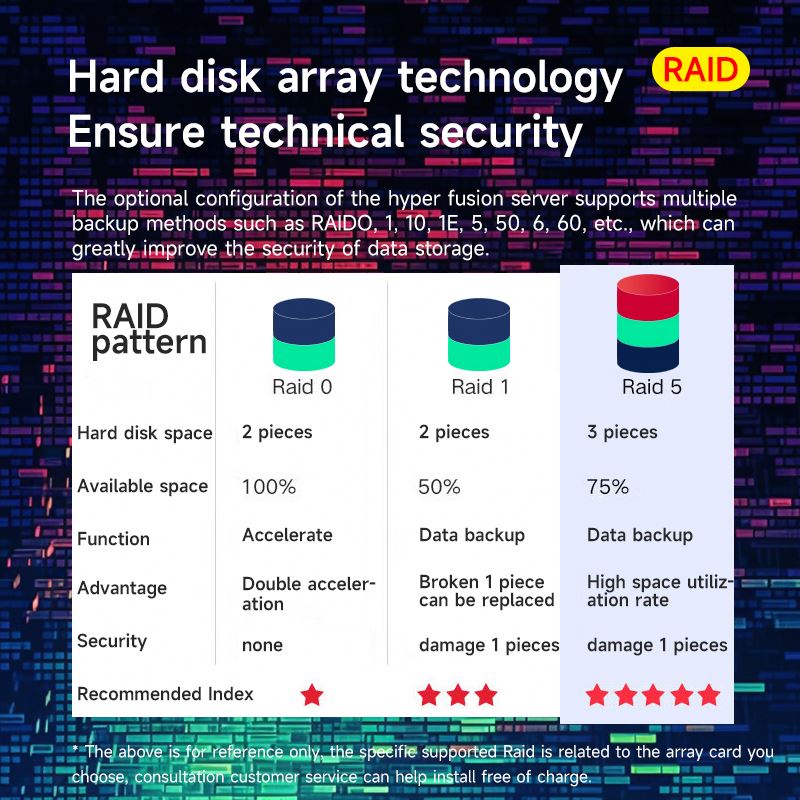

| RAID support | Optional supports RAID0, 1, 10, 1E, 5, 50, 6, and 60, supports Cache supercapacitor protection, and provides RAID level migration, disk roaming, self-diagnosis, and Web remote Settings |
| Network | Supports multiple network expansion capabilities: Supports one OCP3.0 NIC and supports hot swap |
| PCIe extension | Up to 10 PCIe expansion slots, 1 OCP3.0 dedicated FLEXIO expansion slot, 9 standard PCIe expansion slots |
| Fan Modules | Six hot-swappable fan pairs in N+1 redundancy |
| Power Supply Units | Optional 900 w / 1200 w / 1500 w / 2000 w / 3000 w platinum/titanium hot-swappable power, support more than 1 + 1 redundancy |
