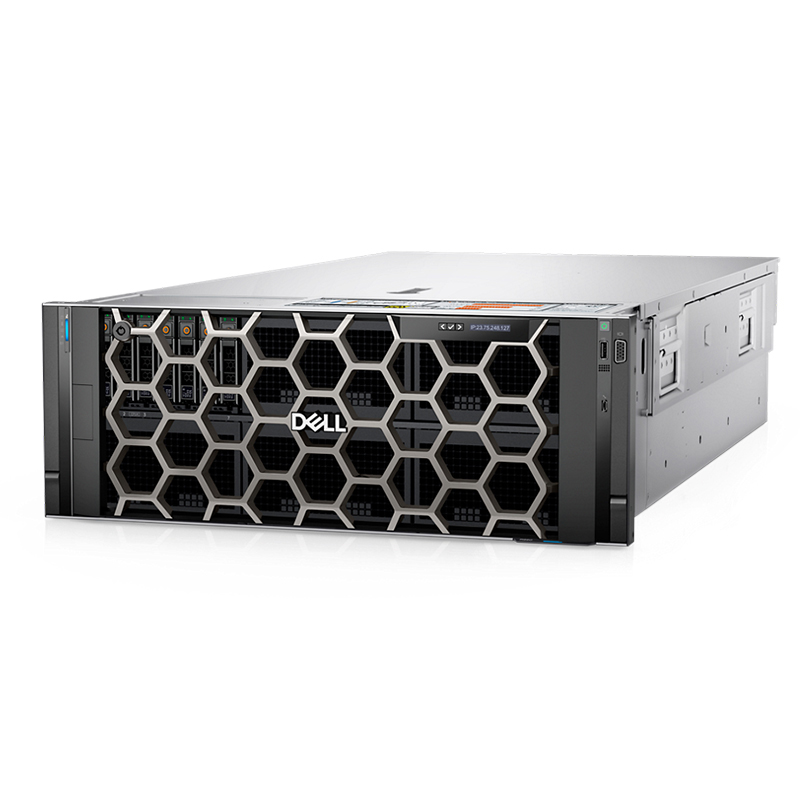

| Server Model | Dell PowerEdge R960 |
| Processor | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor |
| Memory | Up to 64 DDR5 RDIMMs NVDIMM: Not supported DIMM speed: up to 4800 MT/s |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Up to 24 2.5 inch SAS/SATA HDDs/SSDs Up to 24 2.5 inch NVMe SSDs Up to 8 E3. S NVMe hard drives Back: Up to two 2.5 inch hot swappable SAS/SATA or NVMe HDDs Internal: USB and internal BOSS-N1 (2 M.2 NVMe) are used as startup disks. No IDSDM. Bandwidth: Up to 32Gb NVMe/24Gb SAS/6Gb SATA |
| Power Supplies | 1100W, 1400W, 1800W, 2400W, 2800W |
| High availability | Hot swap/RAID controlled hard disk, high power air cooling configuration, PSU, BOSS-N1 (2 M.2 MVMe) |
| Dimensions | 4U x 434mm x 812mm |
| Embedded Management | Licensing options for iDRAC9 Enterprise Edition and Data Center Edition; OpenManage Enterprise and plug-ins (Power Manager, SupportAssist, and Update Manager) iDRAC Direct, Quick Sync 2.0. |
| Front Ports | VGA, 1 USB 2.0, iDRAC Direct mini USB, ID button and LED |

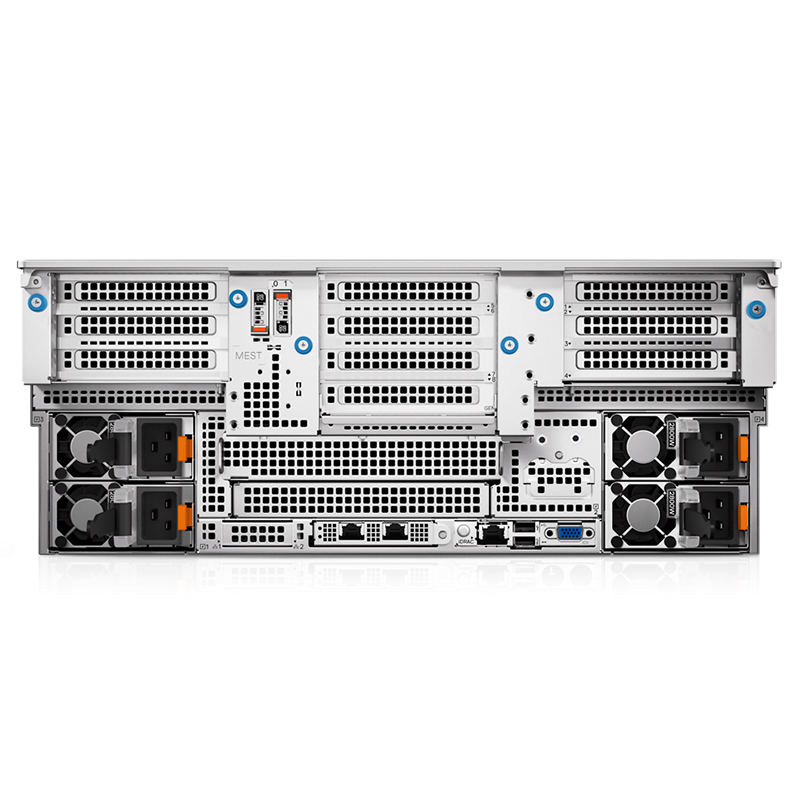

| Rear Ports | VGA, 1 USB 2.0, 1 USB 3.0, management RJ-45, 2 LOM RJ-45, 1 serial port (optional) |
| PCIe | Up to 8 PCIe Gen4 or Gen5 slots without SNAPI No CXL |
| Warranty | 3 years |
• The R960 is powered by four (4) Intel ® Xeon scalable processors in a 4U air-cooled form factor with superior vertical scaling capabilities to power businesses Develop and drive data-driven initiatives to drive business-critical operations.
• The R960 has a maximum number of CPU cores of 60, can support 64 DDR5 DIMMs (a total of 16 TB of memory), and can run large in-memory databases, no need for slower I/O database access.
• By supporting up to 24 NVMe drives, DDR5 DIMMs, 12 PCIe 5.0 slots for I/O expansion, LOM, and industry standard OCP to expand business needs and give customers the flexibility to connect to the network.
• Support for fast 1:1 CPU-I/O communication via PCIe Gen5 adapter.
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
We provide authorized solutions for: Computing servers, Network storage, Network switches, CPU, RAM, HARD DRIVES, and other accessories.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
